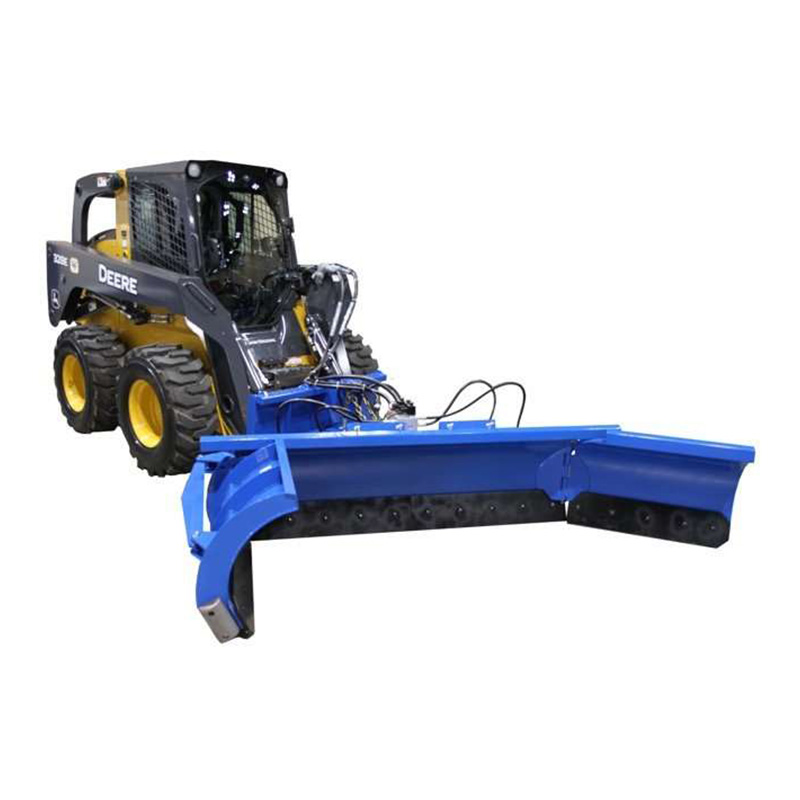

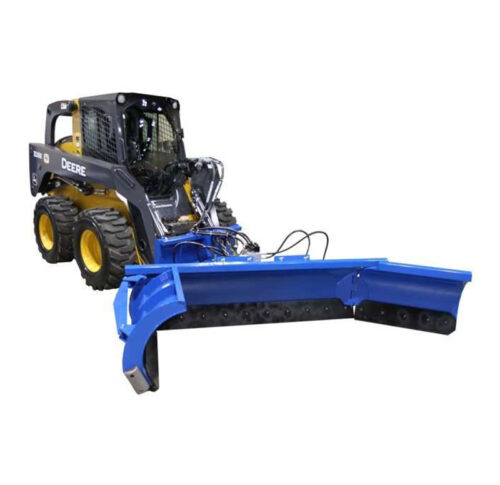

VersaTach Snow Plow
The VersaTach Plow utilizes the hydraulics from your machine’s 3rd valve. By connecting the 3rd valve lines to the VersaTach, the hydraulic manifold allows the 3-in-1 Plow to angle left and right 35 degrees and pivot the winds to the degree needed.
Relief is built into the hydraulic manifold to relieve pressure to the VersaTach Plow as it angles when an obstruction is met. Electric switch is supplied with the VersaTach Plow with three positions to control the angling of the Plow and each Wing at any degree independently.
Please contact us for lead-time 800-851-5108 or urbsales@united-rotary.com
General Info
- Application
- Airport
- Product Type
- Part Number
- -
- Each/Box/Set
- -
- Number Per Box
- -
- Size
- -
Specifications
| Model Number | VT12 |
|---|---|
| Plow Width *In Straight Position | 12.5′ |
| Plow Outside Width *In Box Position | 100″ |
| Center Plow Width | 6.5′ |
| Each Wing (when straight, independently pivoting wings adjustable from 1 degree to 90 degrees) | 3′ |
| Inside Box Width | 6′ |
| Width When Hydroturned *In Straight Position | 10′ |
| Moldboard Height | 27″ |
| Moldboard Material | 11 Gauge |
| Reinforcement Material | 1/4″ Min. |
| Tripping Points | 5 |
| Trip Springs | 4 |
| Weight (lbs.) | 1500 |
| Wear Edge | 3/4″ x 8″ |
Compatible Manufacturers & Models
- Daniels Plows
