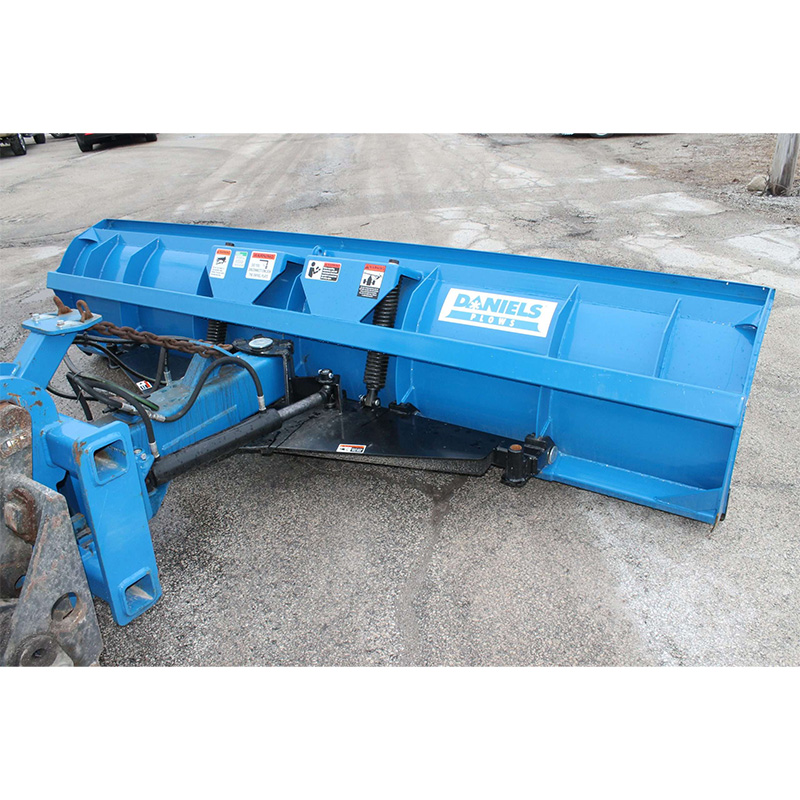

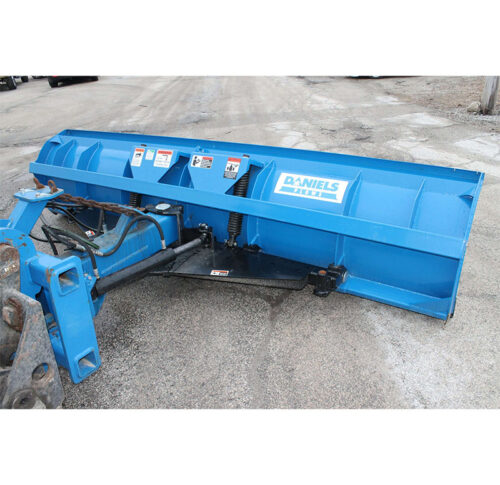

Straight Snow Plow
Also known as the Daniels Municipal Plow, it can best be described in two words – incredibly durable. By using one plow to both push and stack snow, the need for multiple pieces of equipment at the job site is eliminated.
Please contact us for lead-time 800-851-5108 or urbsales@united-rotary.com
General Info
- Application
- Airport
- Product Type
- Part Number
- -
- Each/Box/Set
- -
- Number Per Box
- -
- Size
- -
Specifications
| Model Number | 3308 | 3310 | 3312 | 3314 |
|---|---|---|---|---|
| Plow Width | 8′ | 10′ | 12′ | 14′ |
| Width Hydro-Turned | 6′-6″ | 8′-6″ | 10′-6″ | 12′-6″ |
| PLOW CONSTRUCTION | ||||
| Moldboard: Material | 10 ga. | 10 ga. | 10 ga. | 10 ga. |
| Moldboard: Height | 34″ | 34″ | 34″ | 34″ |
| Vertical Reinforcing Ribs: Material | 1/4″ | 1/4″ | 1/4″ | 1/4″ |
| Vertical Reinforcing Ribs: Height | 10″ | 11″ | 11″ | 13″ |
| Hinged Tripping Points | 5 | 5 | 5 | 7 |
| King Pin Diameter | 2 1/2″ | 2 1/2″ | 2 1/2″ | 2 1/2″ |
| Trip Springs | 2 | 2 | 4 | 4 |
| Shipping Weight (lbs.) | 2100 | 2300 | 2500 | 2800 |
| Wear Edge (reversible) | 3/4″ x 8″ | 3/4″ x 8″ | 3/4″ x 8″ | 3/4″ x 8″ |
Compatible Manufacturers & Models
- Daniels Plows
